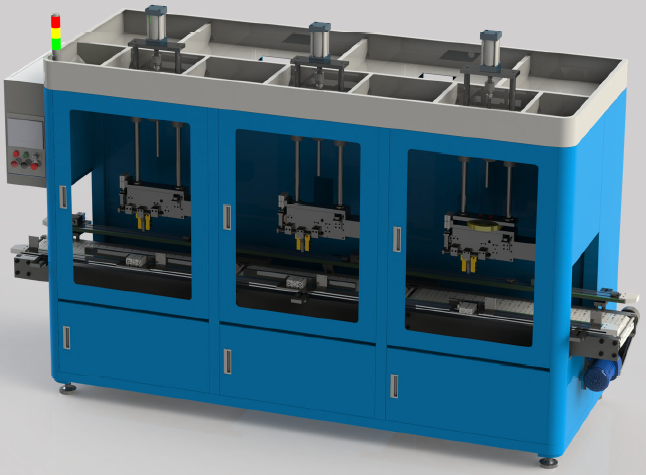

Scope of application: Used for automotive battery pole ear through the wall welding Welding speed: 1 / min Compressed Air Supply: 0.1m3 /min > 0.6MPa for 8x12mm air pipe Cooling water source: 0.3dm3 Power Supply: three-phase five-wire AC400V/50Hz, suitable for 16 square copper wire, power 80KW Welding current: 0 ~ 12.0KA digital display. Working environment temperature: -10℃/50℃ Main frame: A3 steel frame The height of the workbench is 780±30 mm from the ground. Dimensions: 730 x 1150 x 1800 (mm) hydraulic station external. Overall, Weight: 600Kg.
