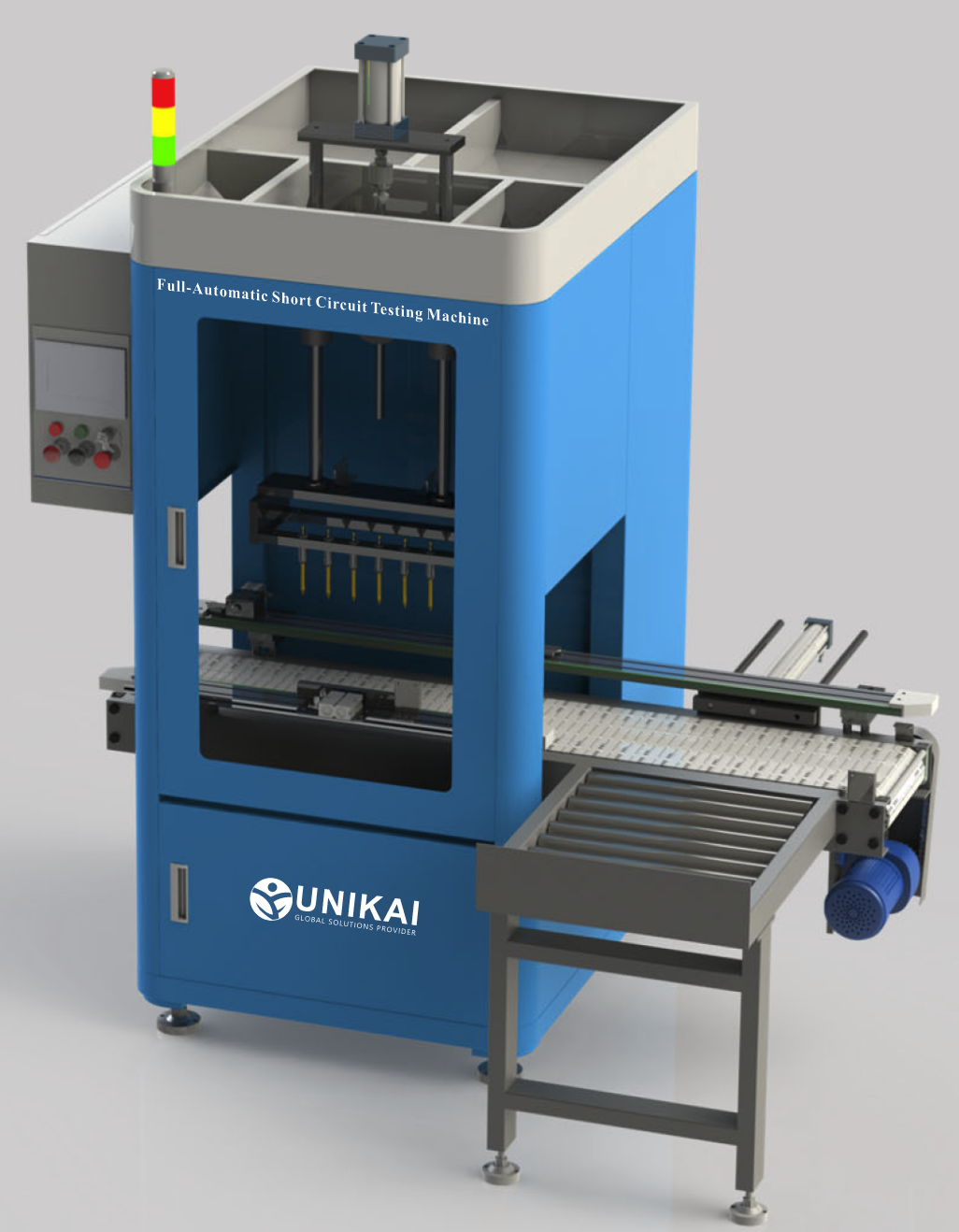

Device model: UT-AST01
Usage: Used for short circuit detection of automobile battery before wall welding
Test speed: 3-4 PCS/min
Gas source: 0.6Mpa gas pipe specification 8x12
Power source: three-phase five-wire AC380V 50HZ suitable for 1.5 square copper wire 2KW.
Test voltage: 0-3KV pulse width 50nS pulse voltage
Test time: 1-10 seconds adjustable
Working height: 720±25 mm
Dimensions: 1800×1200×1900 (mm)
Main frame: A3 steel frame facing the device from left to right
Weight: 600Kg
