Description
Main parameters:

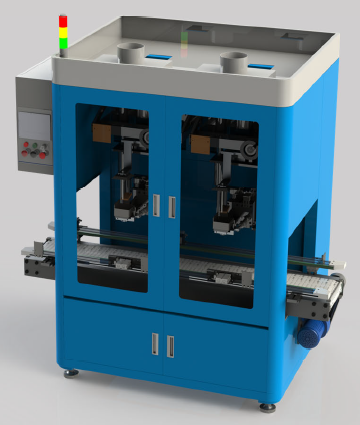

Equipment model: XSH-900
Usage: Used for positive and negative pole welding and pole height detection of lead-acid batteries;
Main frame: A3 steel, facing the machine from left to right, two welding stations, one height inspection
Measuring station, suitable for 1x3 structure battery, device color (blue)
Weight: about 1500kg
Power supply: three-phase five-wire, AC380V/50Hz, suitable for 2.5 square copper wire, power 5KW
Air source: 0.5Mpa, 0.05m³/min, suitable for 8x12mm gas pipe
Capacity: about 3 pcs/min (12V 80AH as an example)
Natural gas dosage and pressure: 1.5 L/min, 0.15Mpa;
Oxygen dosage and pressure: 4L/min, 0.3MPa;
Water source dosage: 2.5L/min, 0.2MPa, 20°C±2°C constant temperature water;
Sintering depth: ≥3-4mm;
Overall dimensions: 3100*1160*1870mm
Height of the worktable: 720±25mm from the ground
