Description

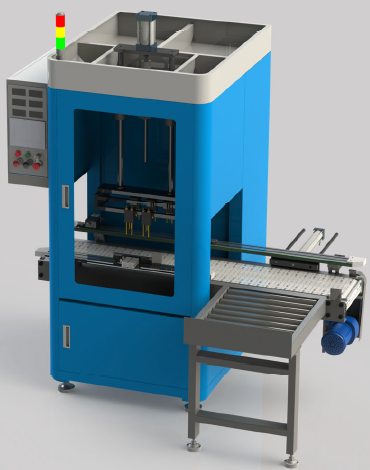

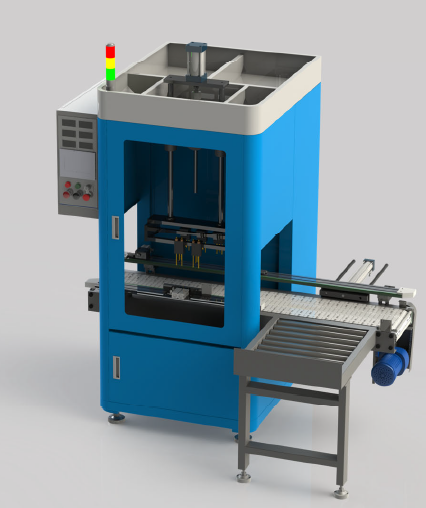

Device model: UT-WQT01
Scope of application: It is used for welding quality inspection of automobile battery pole ear after welding through the wall.
Test speed: 2-3 PCS/min
Power source: Three-phase five-wire AC380V/50Hz suitable for 2.5 square copper wire power 2KW
Air pressure air source: 0.6Mpa, suitable for Φ8x12mm air pipe
Test Short circuit: 30A-80A adjustable
Size: 1800×1200×1900 (mm)
Main frame: A3 steel frame facing the device from right to left
Workbench height: 720±25mm
Weight: about 700kg
