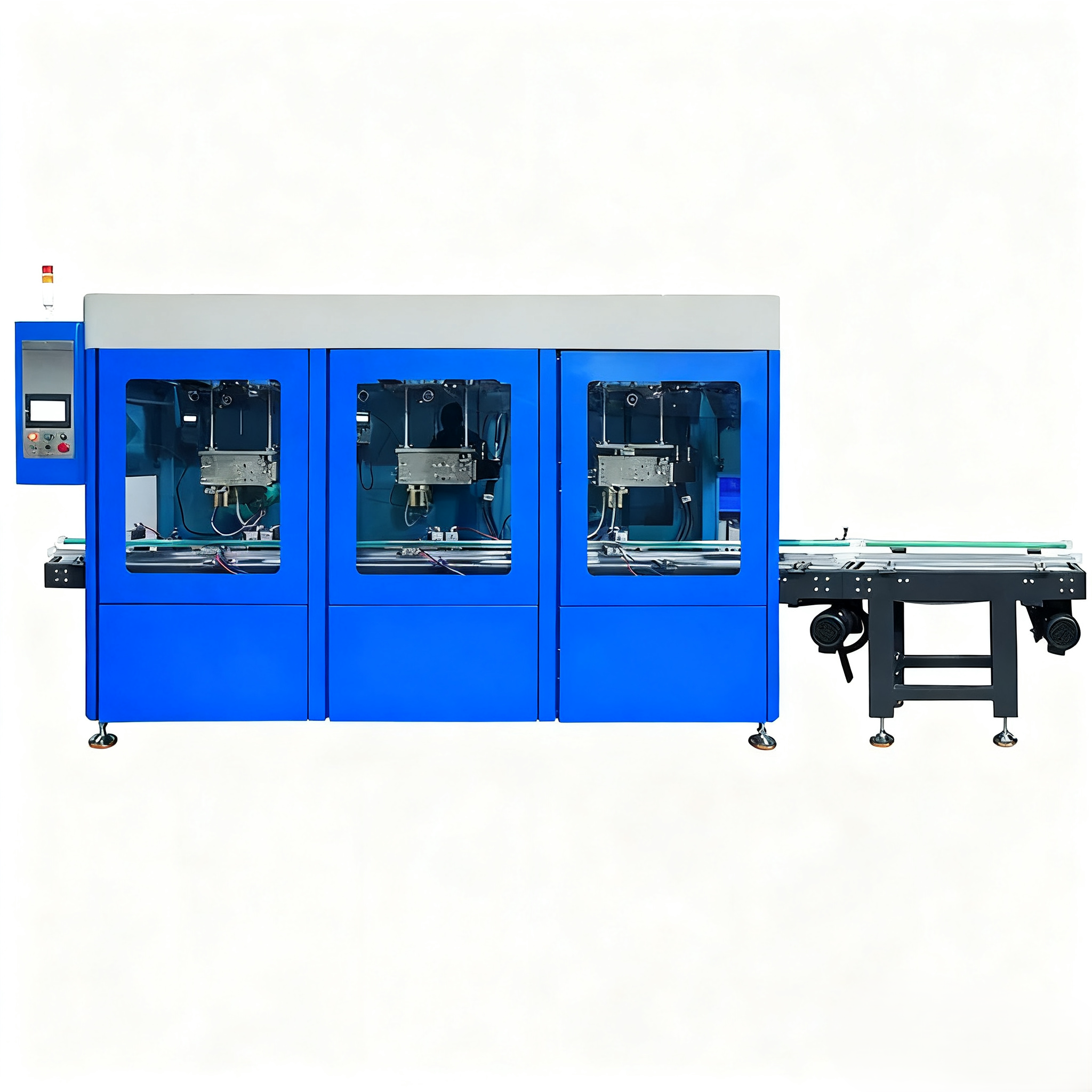

Application: For the inter-cell welding for 32Ah~200AH car batteries.
Operation: The battery will be automatically positioned by the photoelectric sensor. Then the machine will finish the welding processes automatically. The distance between each welding head is 750mm.
Feature: automatic, accurate and rapid, constant energy, constant current; welding heat automatically compensates for the voltage fluctuation. Positioned by photoelectric sensor, welding process and parameters can be controlled by computer automatically, to ensure quality of welding.
Production Capacity: 1000pcs batteries/ 8 hours
Air Supply: 0.8m³/min,0.6MPa
Electric Power: AC380V, 50HZ, 80KW
Weight: 2500Kg
Dimension: 3500*1200*1900mm (the hydraulic station is installed inside the machine)
Main Configuration: A3 steel frame, MIYACHI controller, Mitsubishi PLC, Delta touch screen, hydraulic station, pneumatic components, etc.
Remark: including welding tips Φ10mm, Φ12mm, Φ15mm, 3pcs/size
