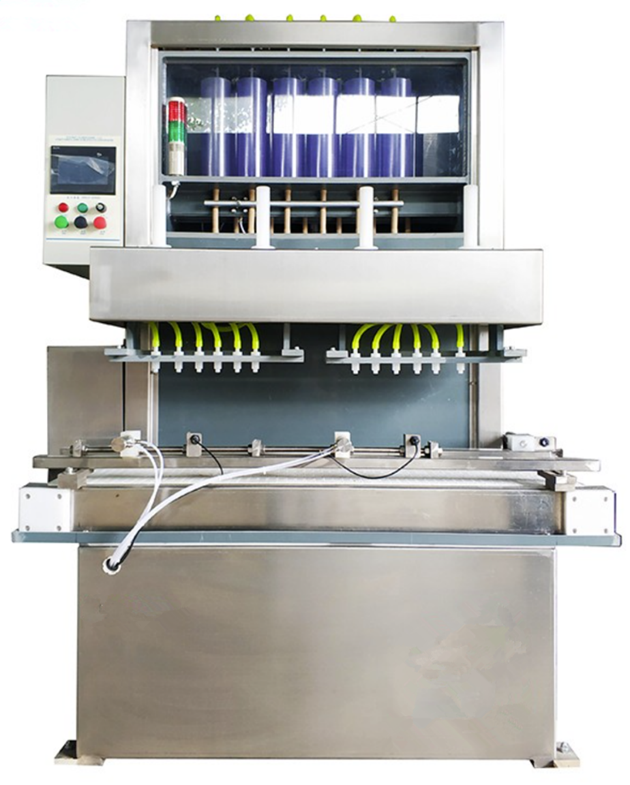

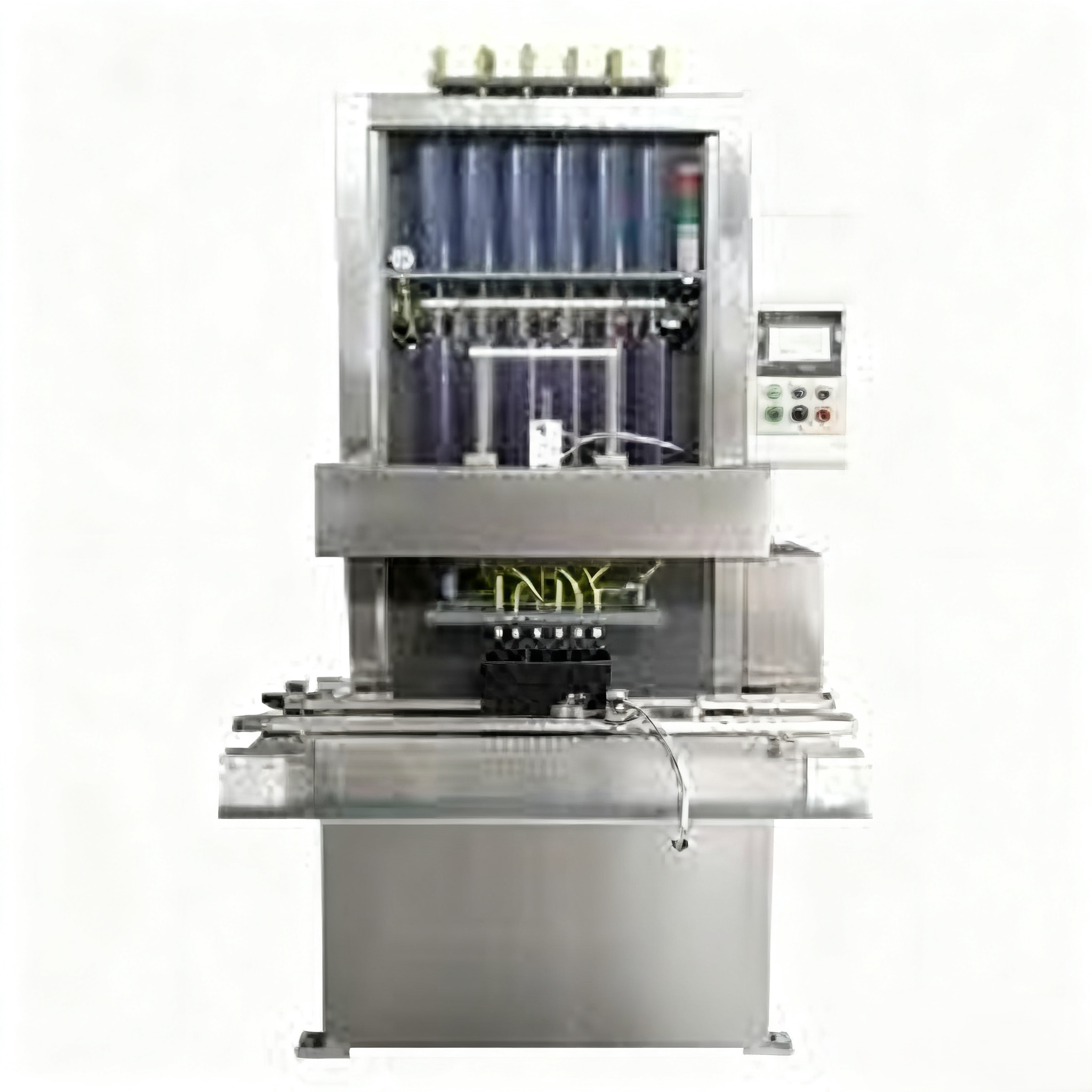

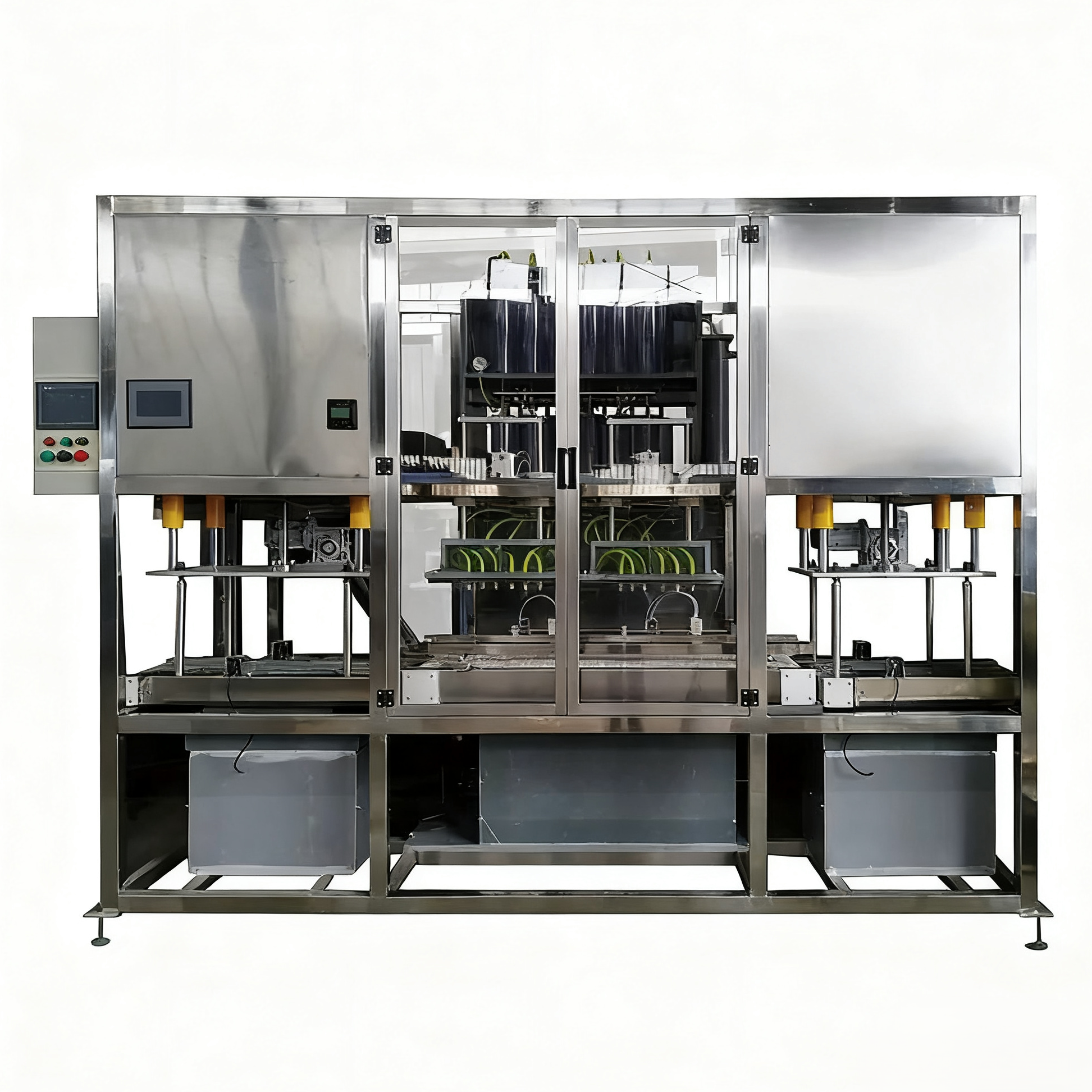

Application: Acid filling for 32-200Ah car batteries (before battery formation).
Operation: It requires to adjust the guiding bar width and machine head height when changing different battery models. Adjust the filling nozzles to appropriate position, the adjustment is easy and stable, easy to operate. After confirming the battery model, pre-set the acid volume via the touch screen, the machine will adjust the acid amount automatically by digital control lifting. Two 12V batteries will be conveyed and positioned automatically, the machine will do the filling, and the finished batteries will be output automatically.
Capacity: 120pcs/ hour
Filling Volume: 300-2000ml/head.
Filling Speed: 1000ml/min/head.
Electric Power: AC380V, 50HZ, 2KW Air Source: 0.1m3/min，0.6MPa
Filling accuracy: ±1% F.S
Dimension: 1200×1100×2200mm Weight: 500Kg
Main Component: PVC or SUS frame, PP conveyor belt, Mitsubishi PLC, Delta touch screen, KOYO rotary encoder, pneumatic components, etc.
