Description
Type no.：TDR51Z

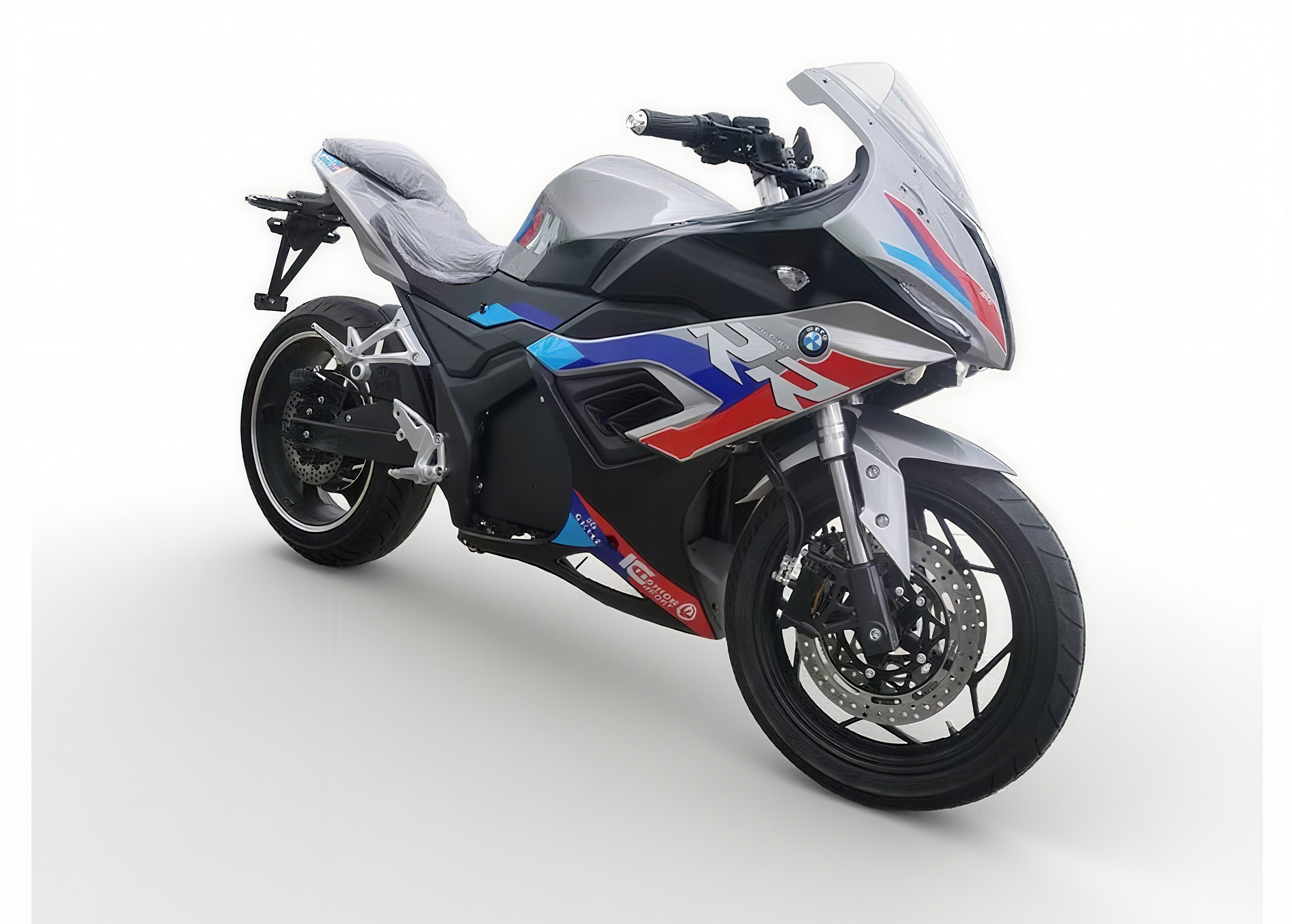

Chinese name：Phantom 01
Dimension：2050*600*1130mm
Wheelbase ：1400mm
Ground Clearance：730mm
Brake system(Front/Rear)：Front and rear disc brakes
Max.speed：90km/h
Range distance per charge：100km
Weight(kg) ：138kg
Motor power(W) ：3000W DC brushless motor
Consume/100km：≤2.5kw/h
Battery type：72V battery
Recharge cycles(times)：1000次/1000 times
Input：110V/220V 50-60 Hz
Charging time：8h
Tyre size：Front 110/70-17 Rear 140/70-17
Climbing angle：20°
controlling method of motor： vector control
APP intelligent positioning：NO
appearance：LCD instrumentation
headlight：LED headlights
loading capacity：300KG
Color：Red, black, white
